At many industrial facilities, the stability of the technological process depends on the ability to quickly monitor the state of the working environment. Even minor changes in the flow can signal the beginning of a malfunction. The appearance of sediment, gas bubbles, foreign inclusions, or discoloration of the liquid are often the first signs of equipment malfunction.
The problem is that most pipelines are completely enclosed systems. It is impossible to determine the flow status without special monitoring tools. For diagnostics, it is necessary to stop the equipment, reduce pressure, or disassemble individual sections of the highway.
That is why a flanged inspection window is installed on many production lines. It allows you to monitor the contents of the pipeline without interfering with the operation of the system. Thanks to this, the staff gets the opportunity to monitor the technological process in real time and react faster to any deviations.
This solution helps to reduce the likelihood of unscheduled shutdowns and reduce equipment maintenance costs.
How is the flanged viewing window arranged?
The design is a metal case with a built-in transparent element. Through it, the movement of the working medium inside the pipeline is monitored.
Carbon or stainless steels are usually used to make the case. The choice depends on the operating conditions, pressure and properties of the transported composition. When working with aggressive substances, materials with increased corrosion resistance are used.
The transparent insert is made of special tempered glass. It is designed to work under pressure and is able to withstand significant temperature loads. Thanks to this, the equipment remains reliable even in difficult production conditions.
The flanged inspection window got its name due to the method of connection to the pipeline. Installation is carried out through flanges, which greatly simplifies installation and subsequent maintenance. If necessary, the control unit can be dismantled without serious interference in the construction of the entire highway.

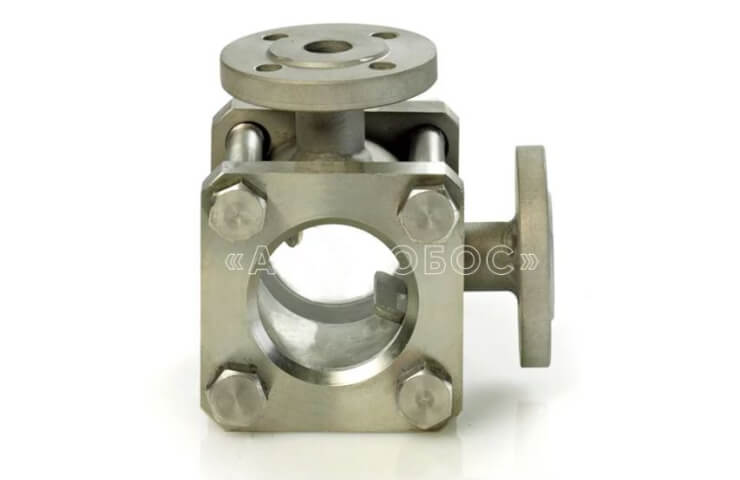

Depending on the tasks of the enterprise, pass-through and corner versions are available. Some models are additionally equipped with built-in illumination, which improves the visibility of the pipeline contents.
What problems does visual inspection help to detect?
The main task of such equipment is to detect deviations from normal in a timely manner.
