Overhead power lines (overhead lines) are an essential part of the power grid, but their wires are often invisible to small aircraft pilots, birds, and operators of oversized equipment. Effective means of light fencing are needed to prevent accidents and incidents.

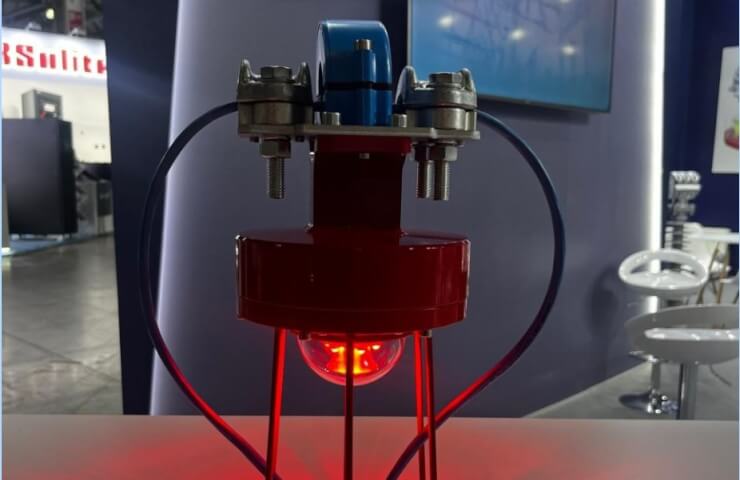

The ZOP-1 barrage is a modern, durable and safe solution for visual marking of overhead lines from 1 to 220 kV. The device was developed and manufactured by IPRIM-ENERGIA LLC in accordance with current standards and has been successfully used at energy facilities throughout Russia.
Key advantages of ZOP-1
, High visibility
The bright red case and UV-stabilized polycarbonate shade provide excellent visibility in all weather conditions.
, Autonomous power supply
It works by inductive energy extraction from the phase wire — it does not require external power supply.
✅ Wide range of applications
It is suitable for wires of the brands AC, ASKS, ASKP, ASK (diameter 17.5–29.4 mm).
✅ Extreme stability
It operates at temperatures from -60°C to +40°C, withstands vibration, dancing wires and ice.
✅ Reliability and durability
Service life — up to 5 years (including storage)
Warranty — 1 year
Resource — more than 100,000 hours of continuous operation
The composition of ZOP-1 is shown in the figure:
Figure – Composition of ZOP-1
Technical specifications in numbers
Power supply: Induction extraction from the wire (1-220 kV, 5-600 A)
Signal Color: Red
Glow mode: Constant
Intensity: ≥10 cd (with background brightness <50 lux)
Radiation angle: Vertical: -5° +10°, Horizontal: 360°
Weight: 4.3 kg
Strength: Withstands force up to 2000 N
Compliance with standards: ONE HUNDRED 34.01-2.2-012-2016 , HUNDRED 34.01-2.2-013-2016 , TU 6.4.5
Where is it used?
ZOP-1 applies:
- In areas of active flight of small aircraft
- In bird migration sites
- During construction and road works with high technology
- At crossings over roads, rivers and railway tracks
The device is installed with standard tools in accordance with the instructions of ZOP-1.00.00 IM.
Flexibility for the client's tasks
We understand that every task
